HARD GLASS XENON FLASH LAMP | TEC/WEST U.S.A., INC.

Photo Flash Display

Product Specification

MFT-120 MFT-250 MFT-426
Design Anode Voltage(Vdc) 500 2,000 900
Min. Anode Voltage(Vdc) 350 1,400 800
Max. Anode Voltage (Vdc) 550 2,400 1,100
Max. Flash Energy (Joule) 200 300 400
Normal@ Flash Energy (Joule) 180 270 360
Max. Flash Rate at Max. Flash Energy (FPS) 1/10 1/10 1/10
Ave. Power Input Max. (Joule * FPS) (W) 20 30 40
Min. Trigger Pulse Voltage (KVP) -6 -10 -10

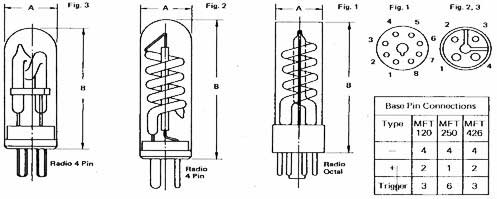

Dimensions A mm 31 29 31
Dimensions B mm 70 90 73
Figure Number 3 1 2
Ave. Flash Life at Normal Flash Energy (Flashes) 8,000 8,000 5,000

Note: FPS= Flash Per Second
