Product Specification

@ TR-4KH TR-6KH TR-7KRY TR-4KM TR-6KM TR-15K TR-20K
Max. Input Energy mJ (F/Vdc) 1.48 (0.033/300) 2.1 (0.047/300) 2.1 (0.068/250) 1.47 (0.047/250) 1.47 (0.047/250) 6.1 (0.1/350) 20 (0.2/450)
Normal Input Energy mJ (F/Vdc) 0.8 (0.033/220) 1.1 (0.047/220) 1.4 (0.068/200) 0.9 (0.047/200) 0.9 (0.047/200) 4.5 (0.1/300) 16 (0.2/400)
Peak Output Voltage of First Pulse at Normal Energy (KVP) -4 -6 -7 -4 -6 -15 -20
First Output Pulse Width (F) 0.7 0.9 1.0 0.7 0.8 3.0 4.6
Dimensions A mm 7 8 7.5 14 18 20 20
Dimensions B mm
16
Max.
12
Max.
12 Max. 15 15 35 35

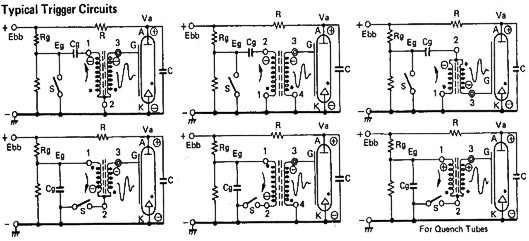

Fig. No. 1 2 3 4 4 6 6

@



@
