High Frequency Flash Tube

Product Specification

MFT-3522T MFT-3534T MFT-4044T MFT-106MS MFT-112M MFT-1210 MFT-151M MFT-151MH
Design Anode Voltage(Vdc) 300 300 300 300 300 300 450 450
Min. Anode Voltage(Vdc) 250 250 250 200 250 250 350 350
Max. Anode Voltage (Vdc) 350 350 400 400 400 400 550 550
Max. Flash Energy for single shot (Joule) 10 20 45 45 45 N/A 200 250
Normal  Flash Energy for high FPS shot (Joule) 0.004 0.006 0.012 0.02 0.05 0.05 0.075 0.1
Max. Flash Rate at Max. Flash Energy (FPS) 250 250 250 250 300 100 200 200
Ave. Power Input Max. (Joule * FPS) (W) 1.0 1.5 3 5 15 5 15 20
Min. Trigger Pulse Voltage (KVP) -4 -4 -4 -4 -6 -4 -6 -6

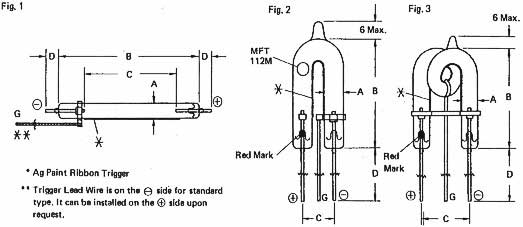

Dimensions A mm 3.5 3.5 4.0 6.3 6.0 6.2 6.2 6.2
Dimensions B mm 22 34 44 32 38 35 43 43
Dimensions C mm 10 20 29 10 12 12 18 18
Dimensions D mm 3 3 3 38 38 38 38 38
Dimensions E mm N/A N/A N/A N/A (Non polarity) N/A N/A
Figure Number 1 1 1 2 2 2 3 3
Ave. Flash Life at Normal Flash Energy (Hours.) 100Hrs. 100Hrs. 100Hrs. 100Hrs. 100Hrs. 50Hrs. 100Hrs. 100Hrs.

Note: FPS= Flash Per Second
